Solar Light
SSL-SOLAR-AL-PRO Series

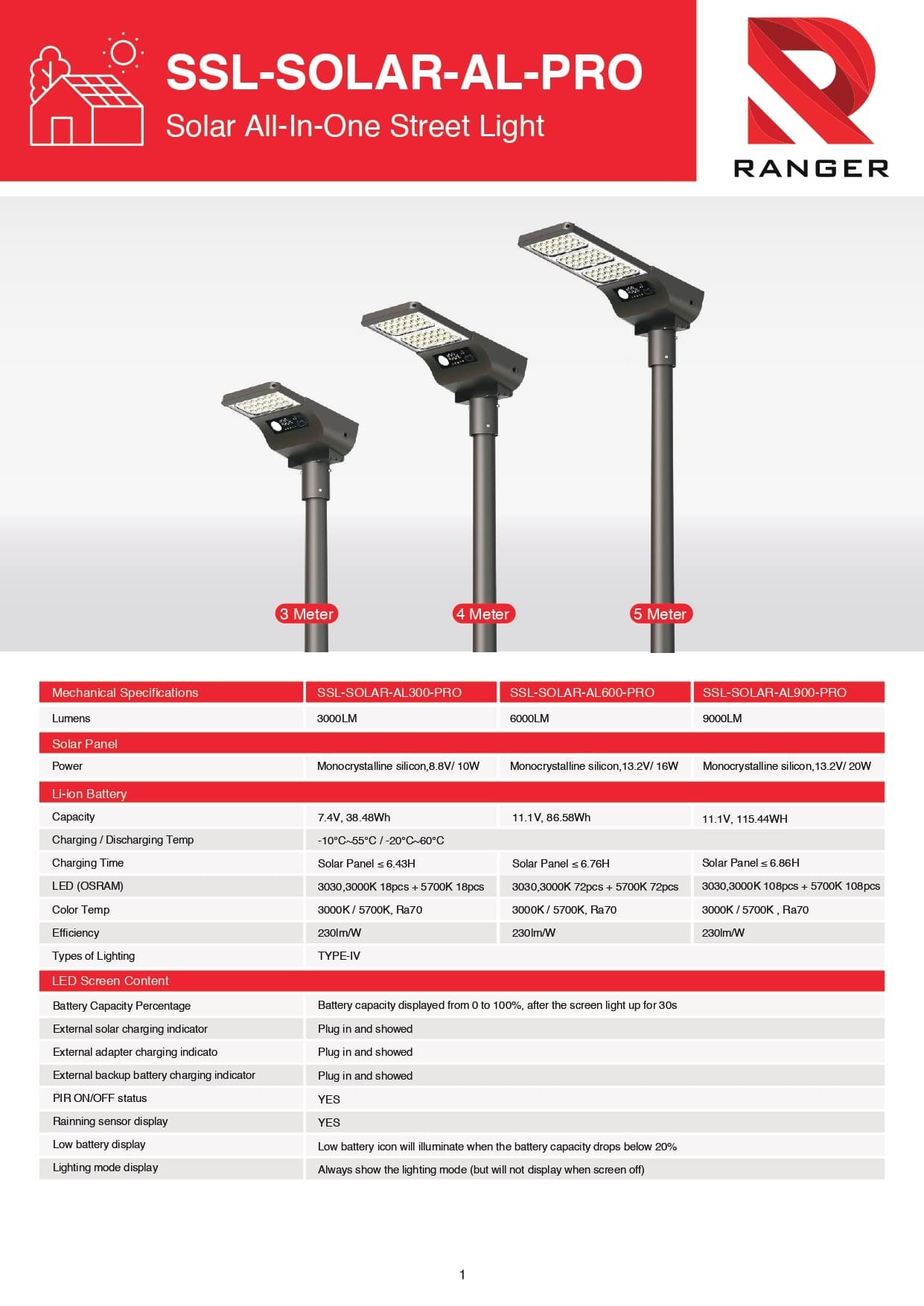

The SSL-SOLAR-AL-PRO Series is an all-in-one solar street light available in three sizes for 3 m, 4 m and 5 m installations: the AL300-PRO (3000 lm), AL600-PRO (6000 lm) and AL900-PRO (9000 lm).
Overview
Each combines a monocrystalline solar panel (10W, 16W or 20W), a Li-ion battery (38.48Wh, 86.58Wh or 115.44Wh) and OSRAM 3030 LEDs in 3000K and 5700K, delivering 230 lm/W with Type IV light distribution. An LED screen shows battery percentage, charging from solar, adapter or backup battery, PIR status, rain sensor status, low battery below 20% and the lighting mode. Three lighting modes combine dimmed output with a 120°, 8 m PIR sensor, and the light runs for more than 5 rainy days. Rated IP65/IK08 with an aluminium and PC body, it weighs 2.25–3.37 kg, mounts vertically or horizontally on a pole or on a wall, and has extension ports for a solar panel, backup battery or external adapter.

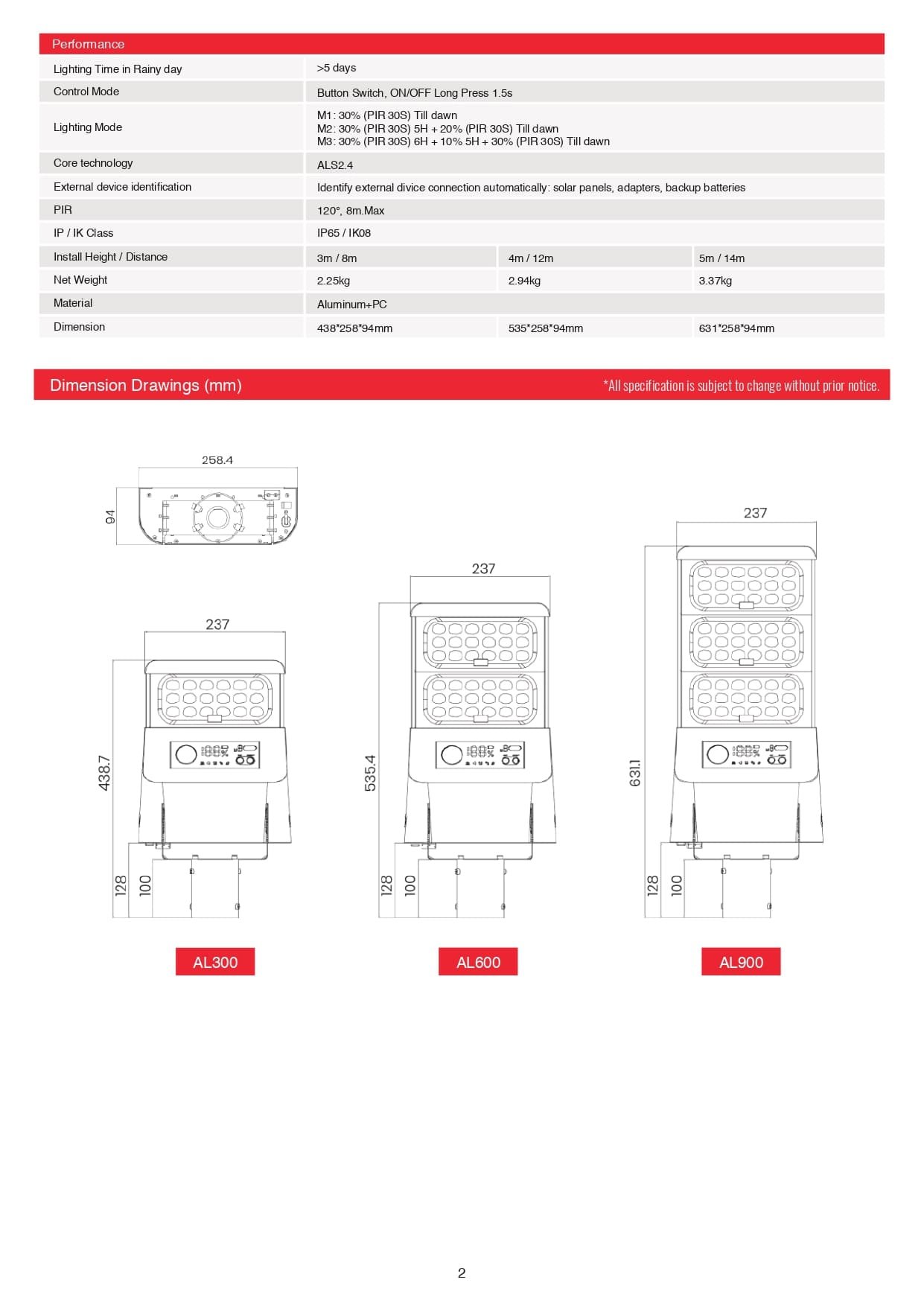

Specification
- Lighting Time in Rainy day
- >5 days
- PIR ON/OFF status
- YES
- Raining sensor display
- YES
- Charging / Discharging Temp
- -10℃~55℃ / -20℃~60℃
- Battery Capacity Percentage
- Battery capacity displayed from 0 to 100%, after the screen light up for 30s
- External solar charging indicator
- Plug in and showed
- External adapter charging indicator
- Plug in and showed
- Low battery display
- Low battery icon will illuminate when the battery capacity drops below 20%
- Lighting mode display
- Always show the lighting mode (but will not display when screen off)
- Monocrystalline silicon
- Li-ion Battery
- External backup battery charging indicator: Plug in and showed
Product Information
Frequently Asked Questions
The SSL-SOLAR-AL-PRO Series is supplied with Monocrystalline silicon.
The SSL-SOLAR-AL-PRO Series uses Li-ion Battery.
The SSL-SOLAR-AL-PRO Series stores charge in the battery listed above, so it keeps running through a power cut and across overcast days. How long depends on that battery capacity and the load you put on it — tell us your load in an enquiry and we will work out the runtime.
It is part of Ranger's solar range, used for sites that need power without a mains connection — guardhouses, perimeter and street lighting, and remote installations. The specification above lists what this particular unit provides; ask us if you need it matched to a site.
Yes. Ranger works through 22,000 authorised dealers across the region, so installation can be arranged wherever you are in Malaysia and Singapore, with exports to Indonesia. Send an enquiry from this page with your site details and we will route it to the nearest installer.
Support runs through our branches in Petaling Jaya (HQ), Penang, Kelantan, Johor Bahru, Melaka, Kuching and Kota Kinabalu. Call 03-7880 2299 or email info@rangerautomation.com.my, Monday to Friday, 9.30am to 6pm, and alternate Saturdays 9am to 1pm.
