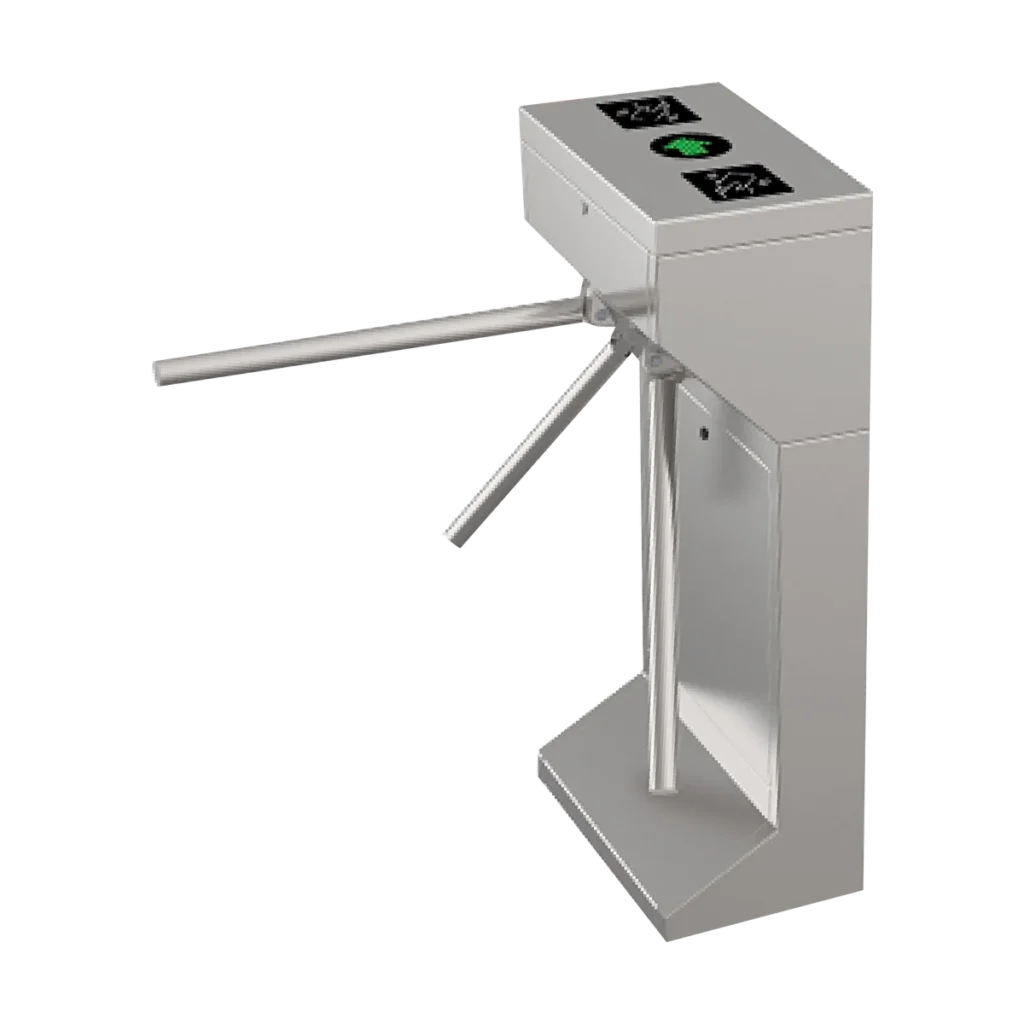

Tripod Turnstile
RG-TSA128-W
- Outdoor
- 480*280*960mm Dimension
- 30~45 Person/Minute Throughput Rate

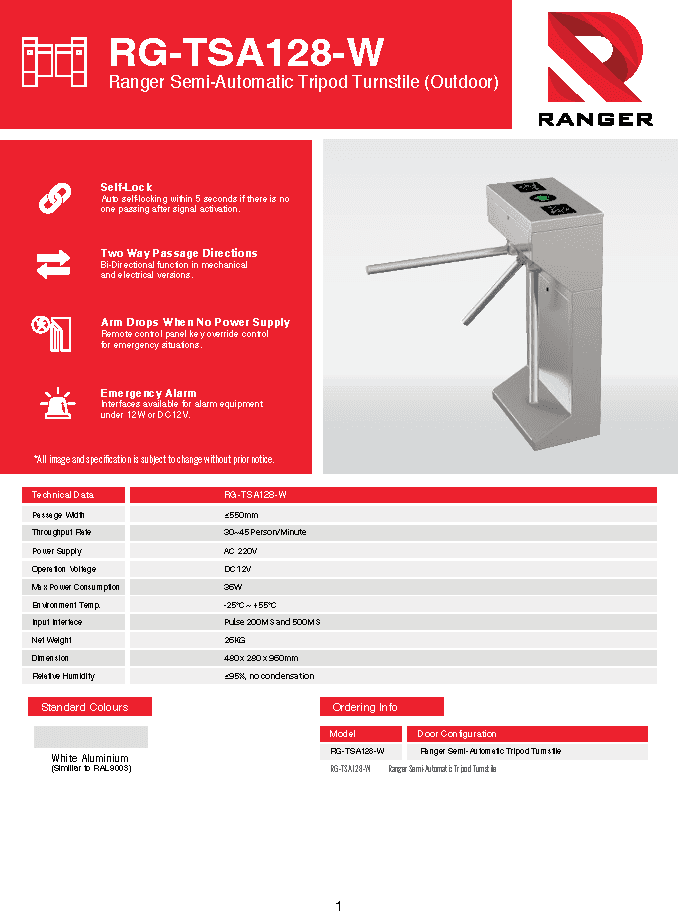

Specification
- Throughput Rate
- 30~45p/m
- Passage Width
- <550mm
- Working Temperature
- 25 - 55
- Dimension
- 480*280*960mm
- Power Supply
- AC 220V
- Operation Voltage
- DC12V
- Max Power Consumption
- 36W
- Working Environment Temperature
- -25~55
- Net Weight
- 26KG
- No condensation Relative Humidity
- <95%
- Tripod Turnstile (Outdoor)
- Pulse 200MS and 500MS Input Interface
Product Information
Frequently Asked Questions
Throughput for the RG-TSA128-W is 30~45p/m Throughput Rate.
The RG-TSA128-W allows <550mm Passage Width. Check this against accessibility requirements for your site.
The RG-TSA128-W is rated for 25 - 55 Working Temperature.
The RG-TSA128-W measures 480*280*960mm Dimension. Confirm clearance at the mounting point before ordering.
Throughput is listed in the specification above. Compare it against your peak flow — tell us the headcount at your busiest period and we will confirm whether one RG-TSA128-W lane is enough.
Ranger turnstiles accept standard reader inputs, so they can be driven by card, fingerprint or face-recognition readers, including the Ranger access control range. Tell us which reader you plan to use and we will confirm the integration.
