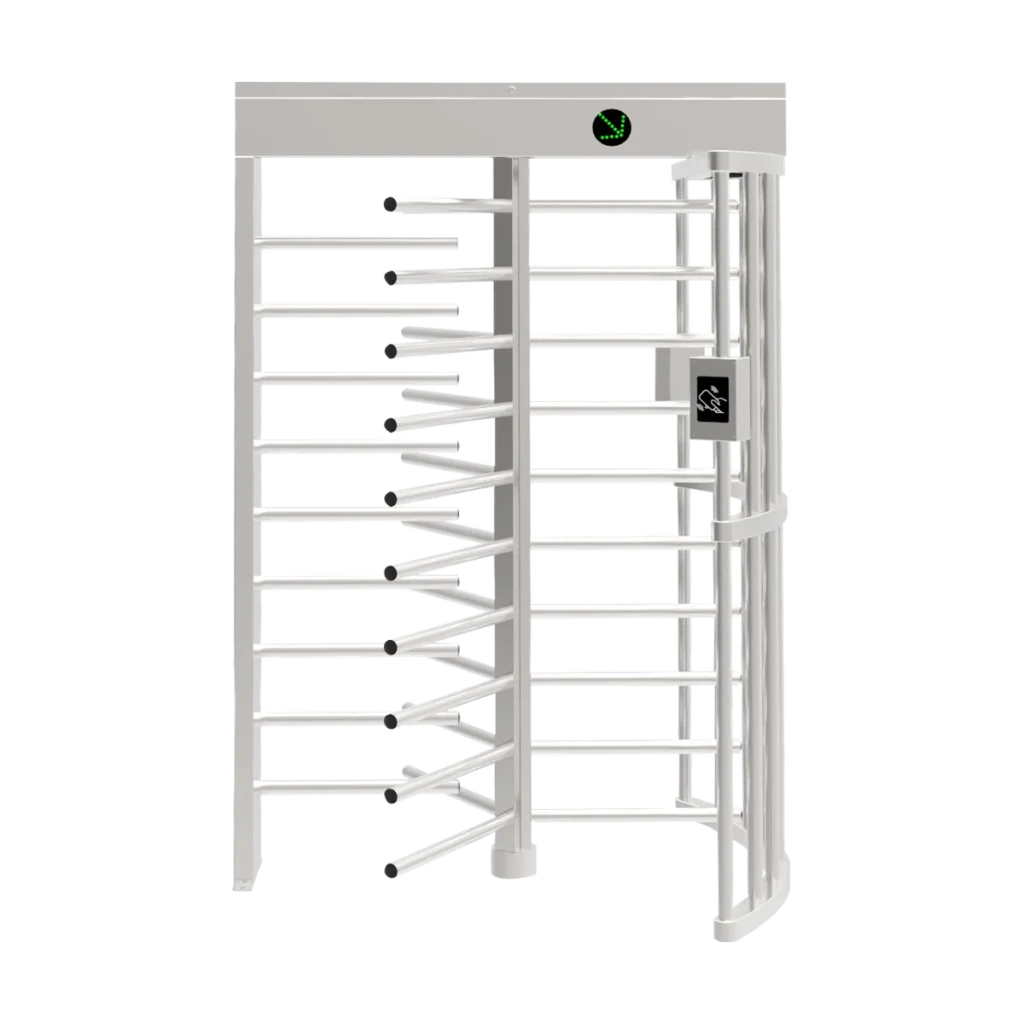

Full Height Turnstile
RG-TFH538 Series
The RG-TFH538 Series is a full-height turnstile in rigidly welded 304 stainless steel, available in four-section 90° or three-section 120° form.
-
Certified
Industry standards -
Ready Stock
In our warehouse
-
In-House Team
Trained technicians
-
40+ Dealers
Nationwide supply
Overview

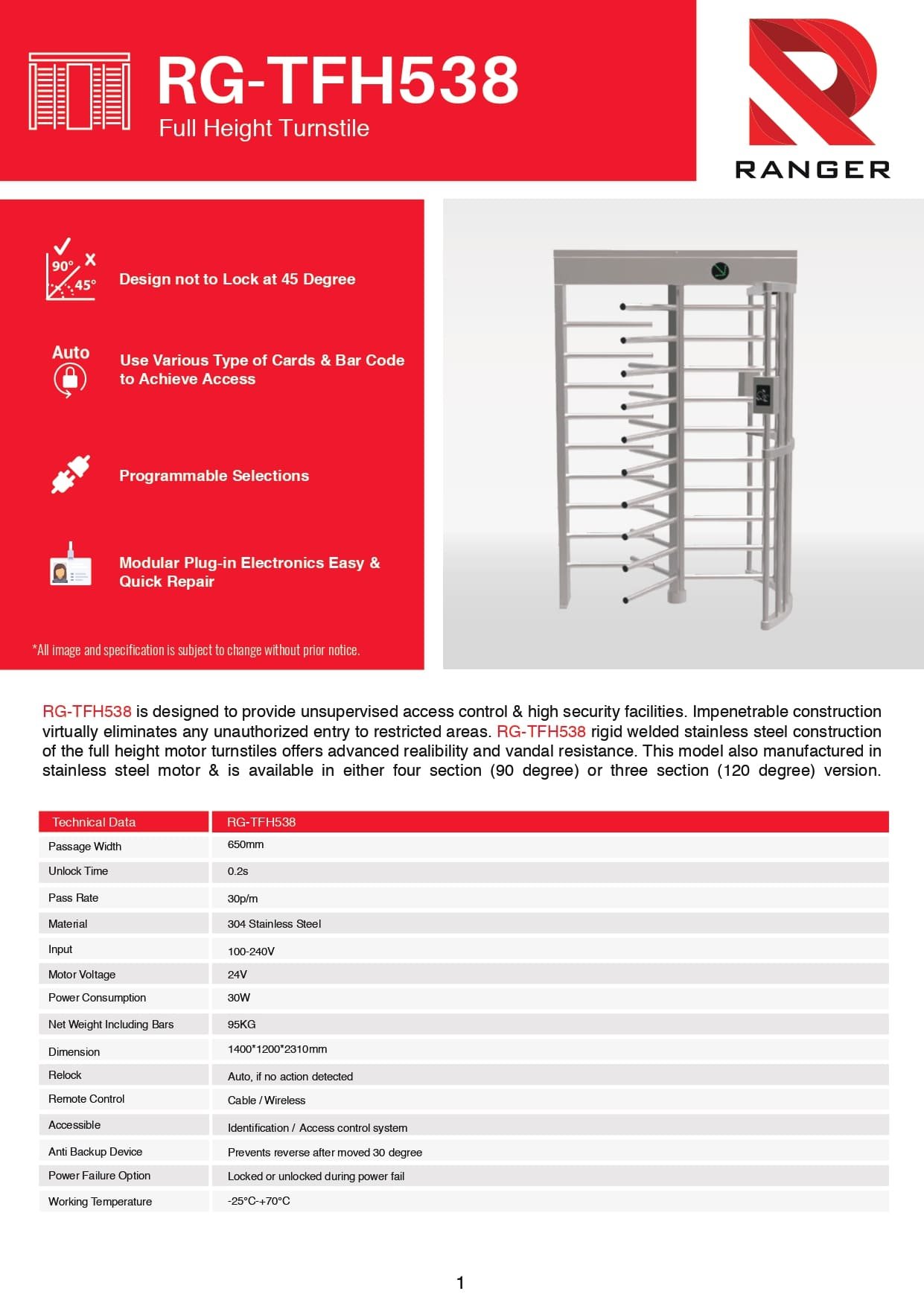

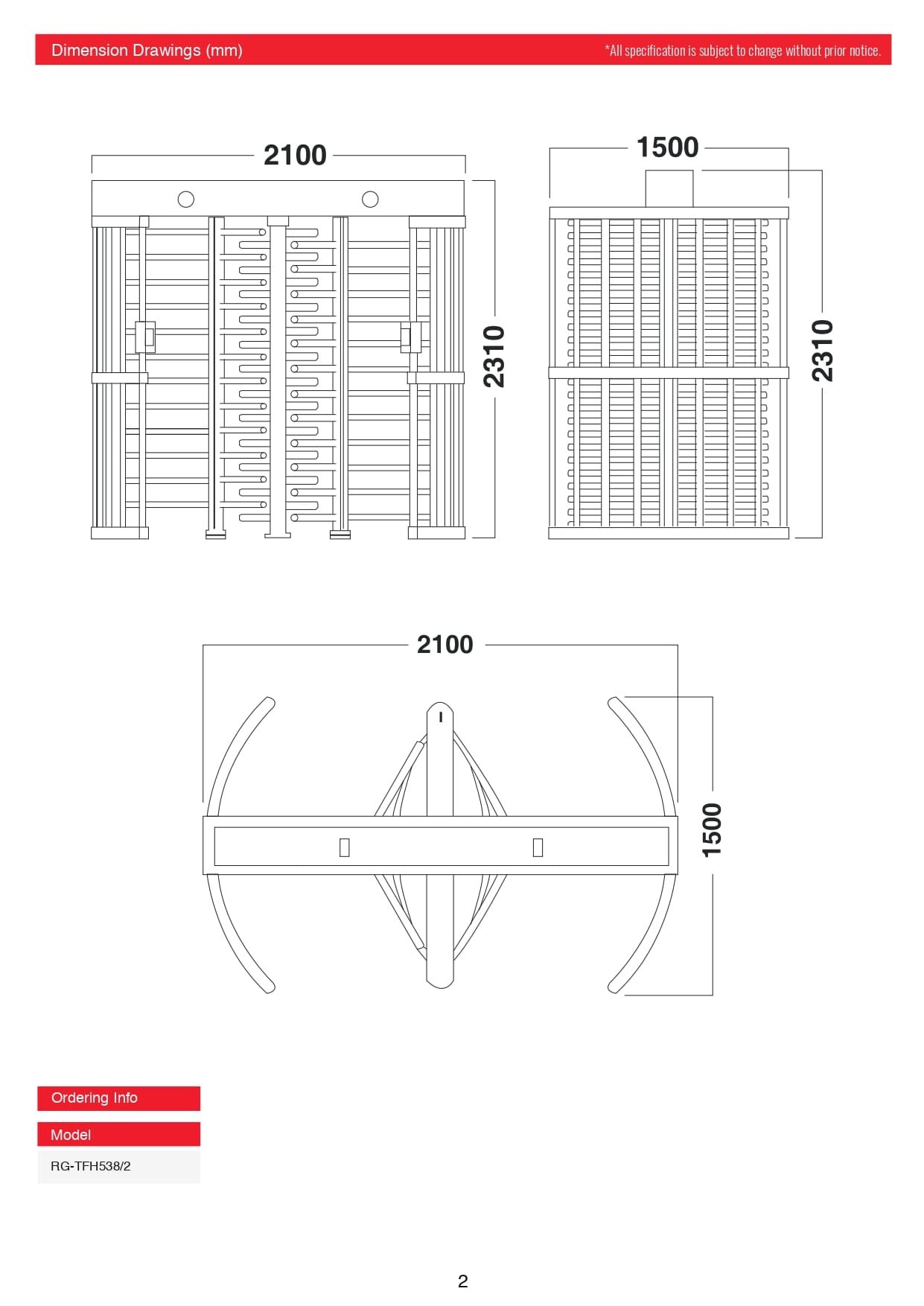

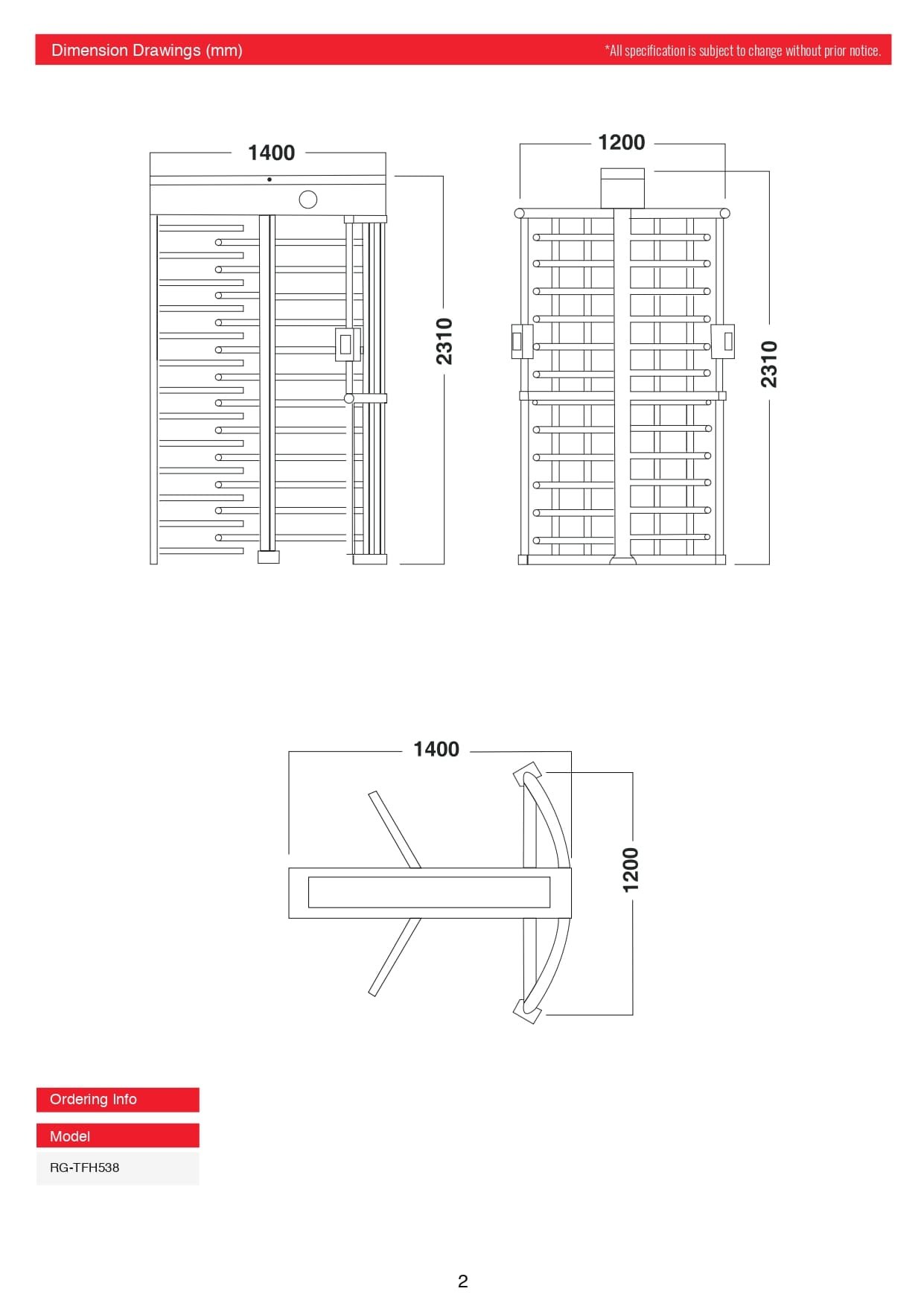

The single RG-TFH538 is 1400 × 1200 × 2310 mm at 95 kg and the double RG-TFH538/2 is 2100 × 1500 × 2310 mm at 240 kg, both with a 650 mm passage, a 0.2 second unlock and 30 people a minute. It will not lock at 45°, relocks if no one passes, blocks reverse movement past 30°, and runs on 100–240V with a 24V motor at 30W.
Specification
- Passage Width
- 650mm
- Working Environment Temperature
- -25~70 Degree
- Dimension
- 1400*1200*2310mm
- Dimension // 2100*1500*2310mm Dimension
- 1400*1200*2310mm
- Power Supply
- AC100~240V
- Max Power Circuit
- DC24V
- Max Power Consumption
- 30W
- Features
- Full Height Turnstile
- Throughput Rate // 30 Person/Minute Throughput Rate 30 Person/Minute
- Net Weight Including Bars // 240KG Net Weight Including Bars 95KG
Product Information
Download
Preferable on Google
5.0
subri abdullah
Good quality product, vast selection and warranty friendly. Thanks to team ranger kelantan. Love from ToCare Autogate & Repairs.
Shah Shah
Thank you for provide ready stock item. Service customer awesome. Fast stock. Sales supportive.
ismaq amer
The store has a lot of camera stock and a variety of camera choices from various brands. The staff named Nor and Ros are also very friendly and helpful in terms of camera choices and camera-related info. My number one choice store! Keep up your best service.
ATOMIC E CIG
Best service and supply of goods, always in stock. Friendly staff and easy to deal with. I always come here to find supplies for my customers.
Translated from Malay
Hamidi Shamsudin
Quality products at reasonable prices. Good customer service and quick response to inquiries. Efficient and responsible technical support services.
Translated from Malay
Muhammad khairul amri
The staff service is the best — even if you ask a lot, they still treat you with kindness. The goods are of good quality and cheaper than other markets.
Translated from Malay
alif mohamad
The best. Friendly staff, always get my stuff here.
Translated from Malay
wan norizan
Found my WiFi CCTV here — the price is easy on the pocket.
Translated from Kelantanese Malay
Frequently Asked Questions
The RG-TFH538 Series allows 650mm. Check this against accessibility requirements for your site.
The RG-TFH538 Series is rated for -25~70 Degree.
The RG-TFH538 Series measures 1400*1200*2310mm. Confirm clearance at the mounting point before ordering.
The RG-TFH538 Series runs on AC100~240V. Confirm your existing supply matches before installation.
Throughput for the RG-TFH538 Series is Throughput Rate // 30 Person/Minute Throughput Rate 30 Person/Minute.
The RG-TFH538 Series weighs Net Weight Including Bars // 240KG Net Weight Including Bars 95KG.
