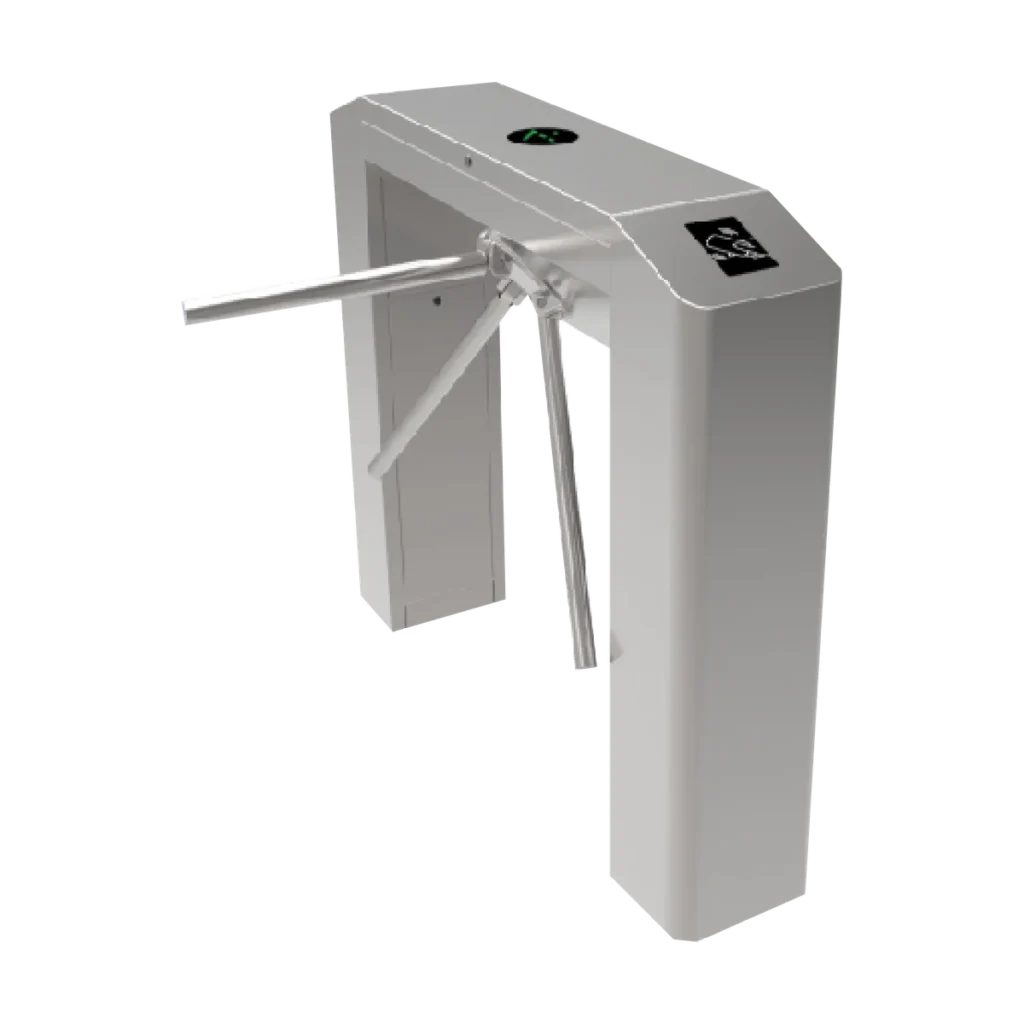

Tripod Turnstile
RG-TSA142-W
- Outdoor
- 1210*280*980mm Dimension
- <550mm Passage Width

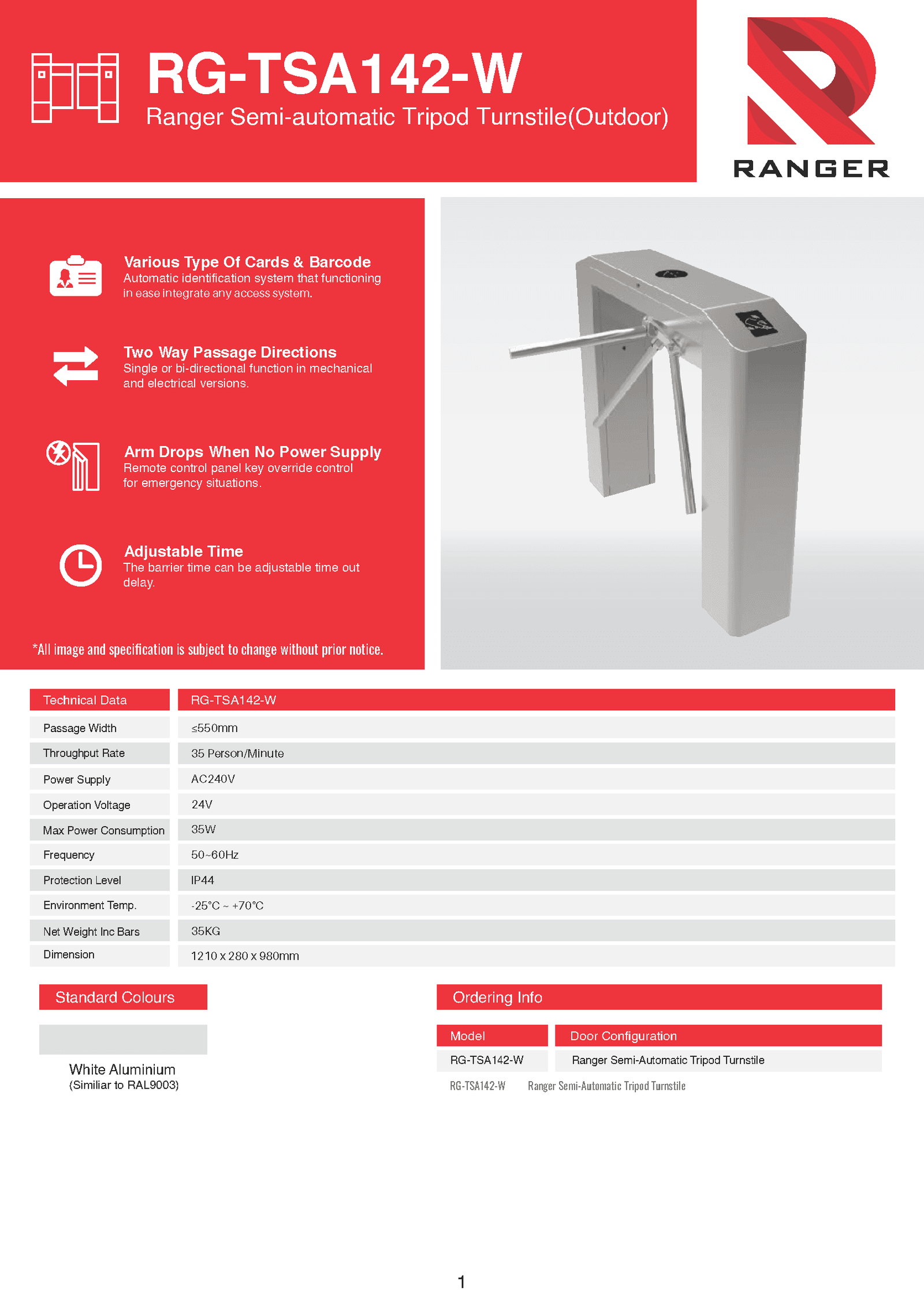

Specification
- Throughput Rate
- 35p/m
- Passage Width
- <550mm
- Working Temperature
- -25 – 70

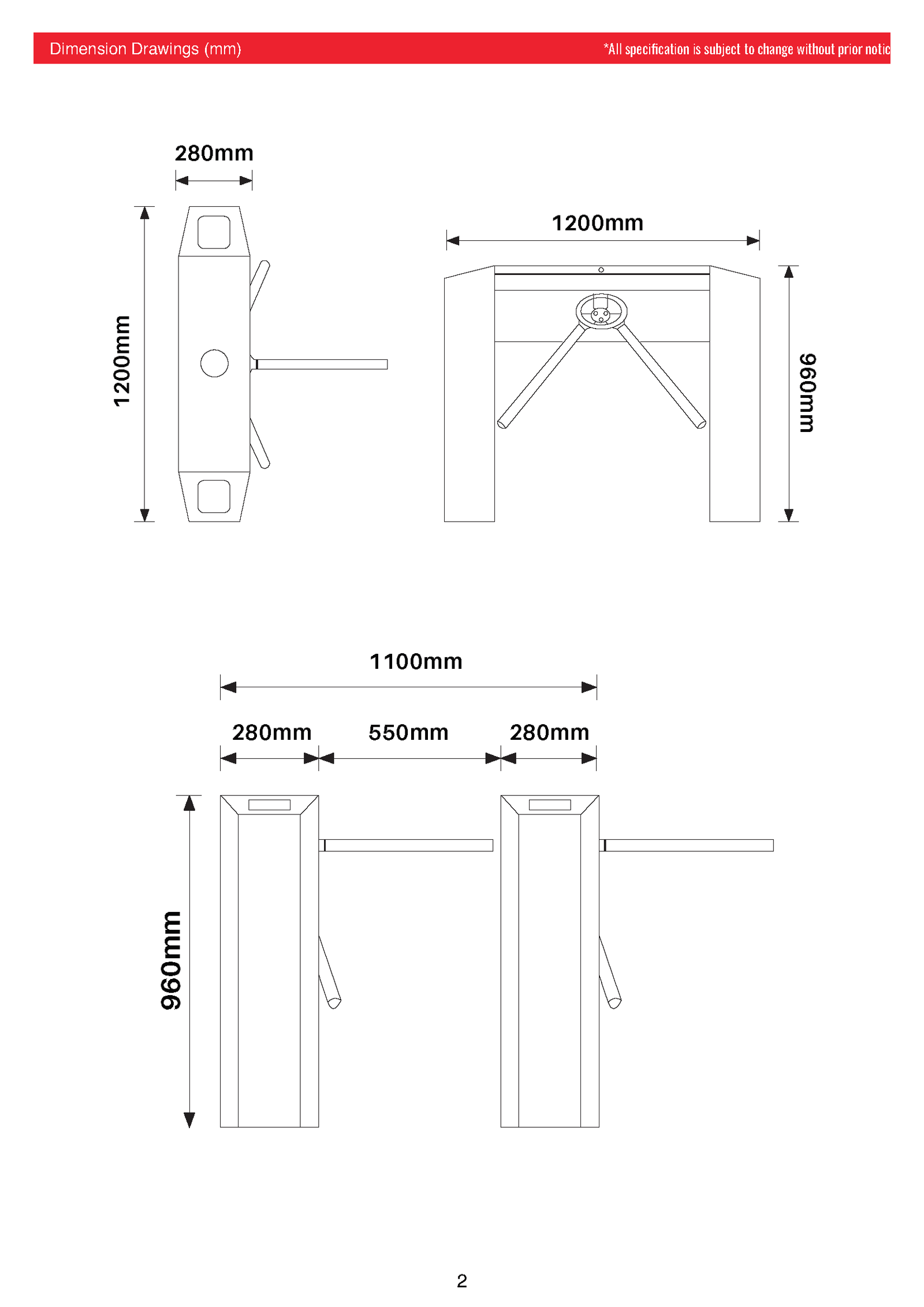

- Dimension
- 1210*280*980mm
- Throughput Rate
- 35 Person/Minute
- Power Supply
- AC240V
- Max Power Consumption
- 35W
- Frequency
- 50/60Hz
- Operation Voltage
- 24V
- Working Environment Temperature
- -25~70
- Net Weight Included Bars
- 35KG
- Tripod Turnstile (Outdoor)
- IP44
Product Information
Frequently Asked Questions
Throughput for the RG-TSA142-W is 35p/m Throughput Rate.
The RG-TSA142-W allows <550mm Passage Width. Check this against accessibility requirements for your site.
The RG-TSA142-W is rated for -25 – 70 Working Temperature.
The RG-TSA142-W measures 1210*280*980mm Dimension. Confirm clearance at the mounting point before ordering.
Throughput is listed in the specification above. Compare it against your peak flow — tell us the headcount at your busiest period and we will confirm whether one RG-TSA142-W lane is enough.
Ranger turnstiles accept standard reader inputs, so they can be driven by card, fingerprint or face-recognition readers, including the Ranger access control range. Tell us which reader you plan to use and we will confirm the integration.
